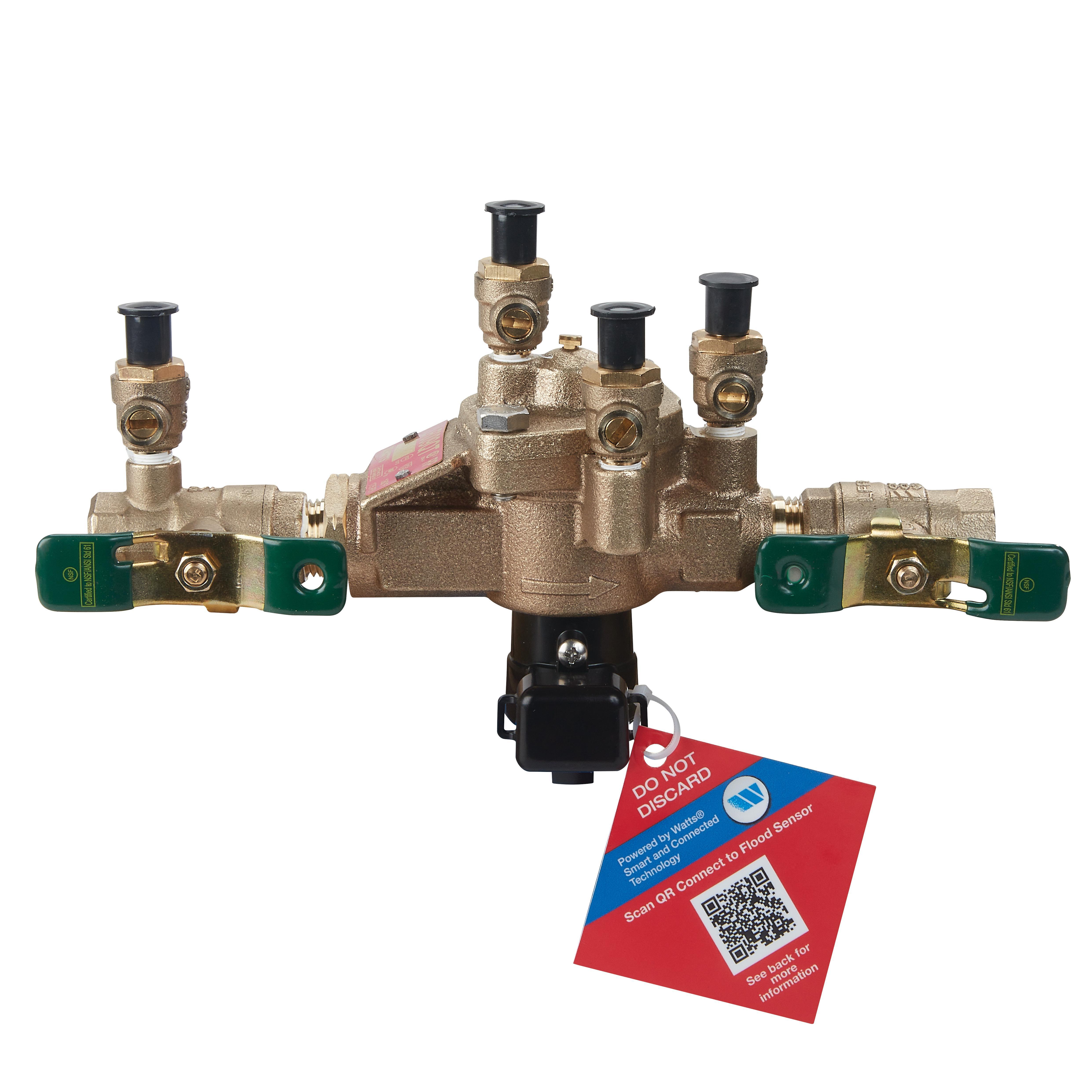

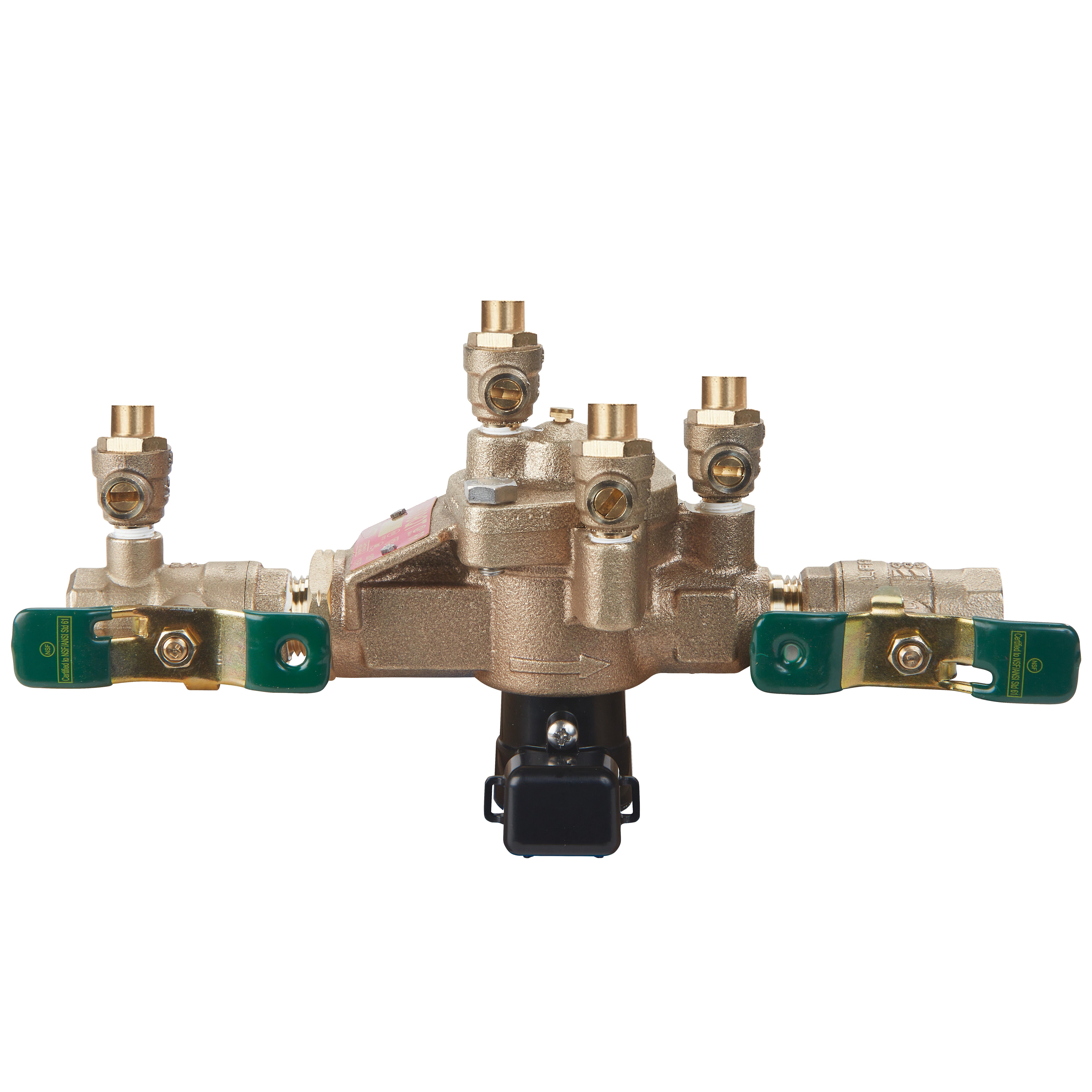

This 1/2 inch lead free copper silicon alloy reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

Backflow Type     :     Reduced Pressure ZoneBall Valve/Gate Valve Type     :     Quarter-Turn Ball ValveBody Material     :     Copper Silicon AlloyDimensions     :     10 in L x 5-7/8 in HEnd Style     :     FNPTFinish     :     Cast Copper Silicon AlloyMedia     :     WaterNominal Size     :     1/2 inPressure Rating     :     175 psiSeries     :     LF009-FSTemperature Rating     :     33 to 180 deg FType     :     In-Line

Test cocks are screwdriver slotted

Internal relief valve for reduced installation clearances

Lead free bronze body construction for durability

NPT inlet and outlet connections

Replaceable seats for an economical repair

Single access cover and modular check construction for the ease of maintenance

Features flood sensor with Sentry
* Plus Alert technology to detect excessive water discharges from the relief valve

Quarter turn full port resilient seated ball valve shutoffs
