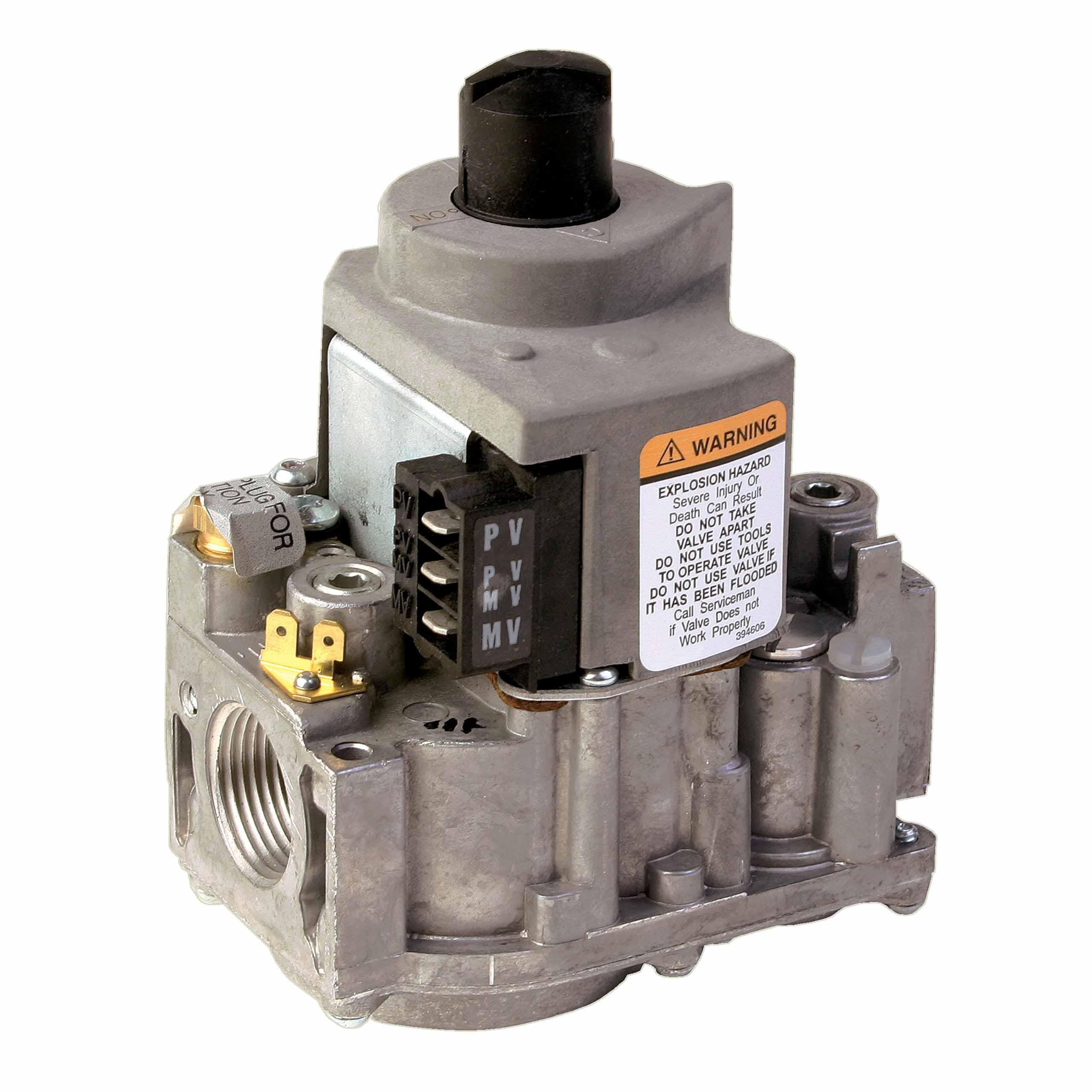

Resideo VR8345M4302/U 1-Stage Gas Valve, 3/4 in, Intermittent Direct Spark Ignition, 30000 to 415000 Btu/hr Nominal Natural Gas, 24 V AC 50/60 Hz Coil

Price : $222.94

List Price : $409.80

FD Quick Code: 941704
MPN: VR8345M4302/U
UPC: 085267780117
Manufacturer: Resideo Technologies
Brand: Resideo
Prop65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In Stock - (Ships same day when order is placed before 2pm PT M-F)

Description


Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities of 30 to 415 cfh. Control includes manual valve,

Coil Voltage     :     24 V AC 50/60 HzDimensions     :     5-3/8 in H x 4-1/16 in W x 2-11/16 in DDomestic/Import     :     ImportElectrical Connections     :     1/4 in Male Quick-Connect TerminalGas Type     :     NaturalIgnition Type     :     Intermittent Direct SparkNominal Capacity     :     30000 to 415000 Btu/hrNominal Size     :     3/4 inPressure Rating     :     0.5 psiSeries     :     VR8345Temperature Rating     :     -40 to 175 deg FType     :     1-Stage

  • Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
  • Replaces many IP, HSI, or DSI gas control
  • Compact size
  • All adjustments and wiring connections accessible from top of control
  • Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
  • Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
  • Internal inlet screen blocks contaminants in gas line from entering valve
